Description

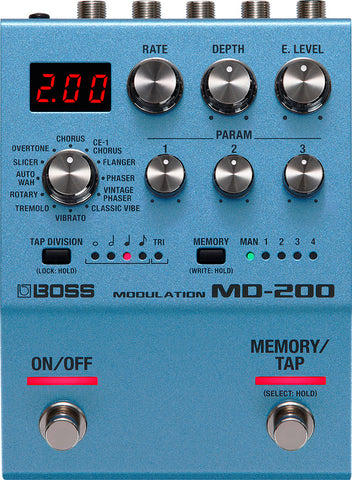

Based on the legendary MD-500, the MD-200 packs the same advanced algorithms and tech into an even smaller pedal. Twelve modes give you every mod effect you need. And each mode has three custom adjustable parameters. While incredibly tactile controls let you make adjustments easily. You can have your sound exactly how you want it. Tap in rates with footswitch-controlled tempo. And patch in additional pedals and other MIDI-equipped devices thanks to a versatile insert function.
Quality and quantity
Boss don't just give you a plethora of modulation options. They also make sure that they all sound great. With 32-bit AD/DA, 32-bit internal processing, and a 96 kHz sampling rate. The MD-200 is built with the same unparalleled quality you've come to expect from Boss. You're in capable hands.
Features
- 12 modes to choose from
- Direct access to rate, depth, and level
- Three custom parameters per mode
- Patchable insert function
Specifications
- Sampling Frequency: 96 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Modes: CHORUS, CE-1 CHORUS, FLANGER, PHASER, VINTAGE PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, ROTARY, AUTO WAH, SLICER, OVERTONE
- Memory: 4 + Manual
- Nominal Input Level: INPUT A/MONO, B: -10 dBu
- Maximum Input Level: INPUT A/MONO, B: +7 dBu
- Input Impedance: INPUT A/MONO, B: 2 M ohm
- Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: ON/OFF switch, MEMORY/TAP switch, MODE knob, RATE knob, DEPTH knob, E. LEVEL knob, PARAM 1 knob, PARAM 2 knob, PARAM 3 knob, TAP DIVISION button, MEMORY button
- Display: 7 segments, 3 characters (LED)
- Indicator: TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators

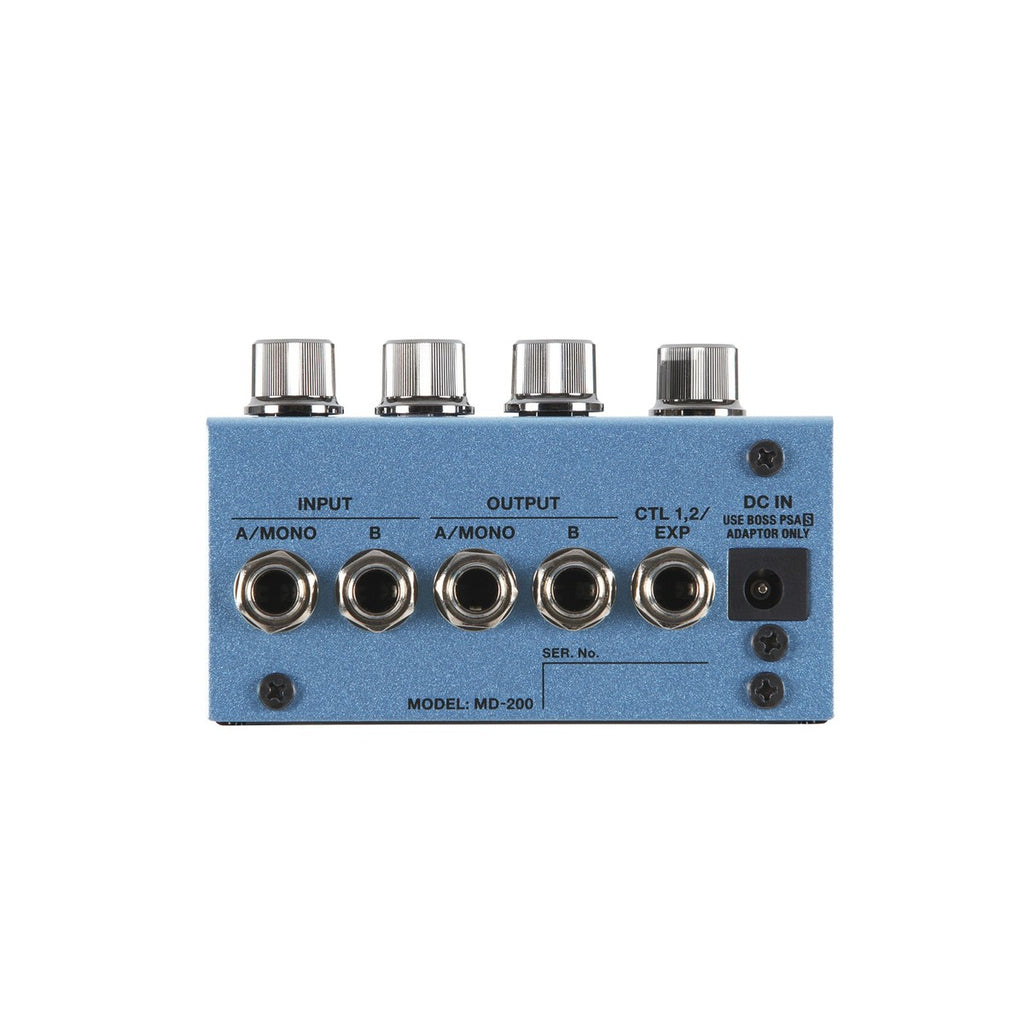

- Connectors: INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB micro B-type (program update only)
- Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw: 225 mA
- Expected Battery Life Under Continuous Use: Alkaline: Approx. 4 Hours
- Dimensions: 101 x 138 x 65 mm
- Weight: 610 g
